Description

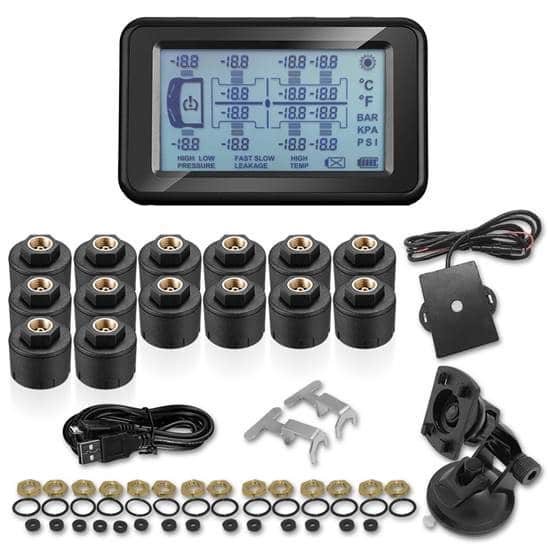

TPMS CDP-M05 Solar 4 to 14 Wheel Pressure Gauge
The professional TPMS CDP-M05 Solar 4 to 14 Wheel Pressure Gauge is a real-time tire pressure and temperature monitoring system for heavy vehicles.
It can reliably control the condition of your wheels. The digital TPMS system indicates, Â through a complete LCD display and acoustic alarms, which exact tire needs your attention. It provides detailed information on the pressure and temperature of each tire.
This TPMS tire pressure gauge was designed for professional use and for all types of heavy-duty vehicles. It is suitable for caravans and motorhomes as it withstands high levels of pressure (higher than that of utility vehicles).
The professional solar TPMS CDP-M05 pressure  gauge allows monitoring up to 14 wheels with or without optional repeater. In addition, it allows the use of external or internal sensors. Because of its solar panels, it is practically self-sufficient so it can permanently operate without cables.
Technical characteristics:
- Solar charging / USB charging.
- Automatic backlight.
- Visual and audible alarms.
- Pressure range up to 18 BAR.
- Temperature range: 150 °C.
- Screen working temperature: -20 °C ~ + 80 °C.
- Display storage temperature: -30 °C ~ + 85 °C.
- Transmission frequency: 433.92MHz.
- Measurements (L*W*H): 11.43 * 7.11 * 2.29 cm.
- Weight: 136g.
- With external or internal valve sensors included (depending on the option selected):
- Battery life: 2 years.
- Replaceable batteries, model CR1632.
- Weight: 25g.
- Measurements: diameter 1.2 inches, height 0.88 inches.
- Transmission frequency: 433.92 MHz.
- Working temperature: -40 °C ~ + 125 °C.
- Pressure accuracy: ±0.1BAR (±1.5PSI).
- Temperature accuracy: ±3 °C.
