Description
TD1000A 4 wheel tyre pressure monitor (0 a 80 psi / 0 a 5.52 bar)

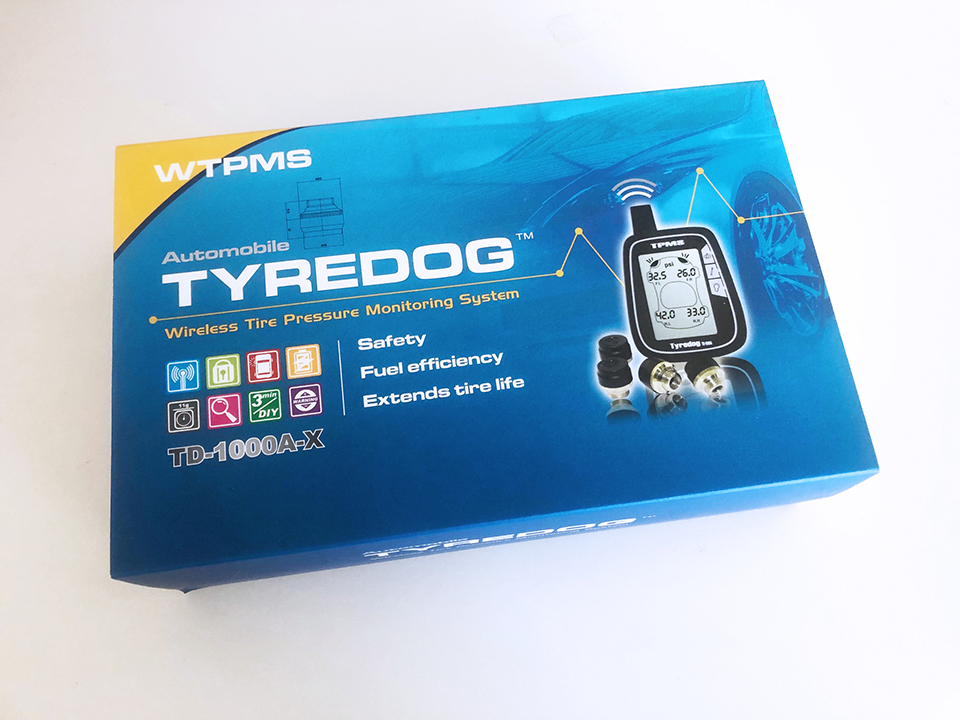

The TYREDOG™ TD-1000A-X Tyre Pressure and Temperature Monitor comes with 4 Sensors to support (4) tyres, monitors up to 80 PSI and can be easily installed (D.I.Y)
The User Friendly Graphic Interface (LCD monitor), allows the user to monitor and understand the status of their tyres thus ensuring they are always well maintained.
Correct tyre pressure ensures fuel efficiency, reduces tyre wear, the risk of aquaplaning and lack of traction.
Normally all the necessary check-ups cost time, effort and money.
Recommended Use: Car/4WD. (Accurately Measures up to 80 PSI)
The Design
- All sensors can be securely locked onto tyre valves for added safety.
- Learnable sensors are available so in the event of theft or damage, sensors can be quickly and easily replaced.
- Sensors have unique individual codes to ensure there is no interference from other 433MHz devices, even other TYREDOG™ systems.
- All TYREDOG™ kits undergo strict field testing to ensure quality.
- Sensors are treated for anti-corrosion during manufacture and use rubber seals to prevent liquid and fine particles from coming in contact with the circuitry.
How it works
The Wireless Sensors are fitted to the wheels valve stem. Simply replace the valve cap with a Wireless Sensor and fit the supplied SecureFit ring to ensure the sensor is securely fastened. This SecureFit ring can also act as a theft deterrent.
Once the Sensors are fitted and the monitor/receiver is turned on, within a couple of minutes or once the wheels rotate, the latest Pressure and Temperature information will be updated on the monitor/receiver.
The sensors are constantly monitoring and reading your tyre pressure and temperature and as soon as there is a change in pressure, the sensors will transmit the latest pressure and temperature reading to your monitor.
If the Pressure falls or raises above the user preset levels, the unit will sound to alert the driver. There is also a visual indication on the Monitor / Receiver unit.
Low, High Pressure and High Temperature threshold settings can be adjusted by the user.
For further information regarding the operation of this unit, please read the Owners Manual which can be found by clicking on the Downloads Tab.
What’s included
- 1 x Monitor / Receiver (inc 2 x AAA Batteries)
- 4 x Wireless Sensors (inc 4 x CR1632 Batteries)
- 4 x SecureFit Rings
- 1 x Mounting Bracket
- 1 x Cigarette Lighter Power Adaptor
- Owners Manual
General Features
- Monitors 4 tyres
- Simply Screw on to the Valve stem and lock in place
- Audible / Visual Alerts when tyre pressure drops below / raises above user set level
- Measure Pressure in PSI, KPA, BAR or KgCM
- Alerts when tyre temperature raises above the user set level
- Measure Temperature in Celsius or Fahrenheit
- Provide graphic user interface
- Monitoring tyre pressure anytime
- Low Battery Indicator on the display for Monitor and Sensors
- Expands tyre lifespan
- Saves fuel consumption
- Improves safety
- Detects leakage before harm is done
- Easy to install
- High accuracy
- Not affected by bumpy roads
- Allows user preset value
- Detects both under inflation and over inflation of tyre
Reliability and Robust
- All major components are fully exchangeable in case any component is broken
- Provides signal accessibility by providing peripheral signal integrity technology
- Extremely lightweight, small in size and its’ special unique mechanical designed sensors have won the TD-1000A Series the best TPMS system in this industry
SPECIFICATIONS
Operating environment (Receiver Unit)
- Operating temperature range -30 deg to 85 deg C
- Storage temperature range -40 deg to 105 deg C
- Operating humidity 100%
- Vibration 3.5mm 10 Hz in X,Y and Z direction
Power (Receiver Unit)
- Power Required 12V DC (MiniDC jack) or Battery DC 3V
- Battery Life: Approx. 1 Year
- Battery type AAA 1.5V (x2)
Dimensions Monitor (Receiver Unit)
- Weight 143 g
- Size L 90.5mm * W 73mm* D 22.5mm
- LCD View size L 60mm * W 40mm
System (Receiver Unit)
- System frequency at 433 MHz
- Sensor pressure range 0-80 psi
- Sensor pressure sensitivity ± 1.5 psi
- Sensor temperature sensitivity ±2 deg C
- Low power consumption in sensor
- Transmission length: up to 10M (Can vary between vehicle’s)
- Receiver sensitivity is -112dBm
Emissions (Receiver Unit / Sensors)
- FCC Comply with part 15,Class B
- CE
- C Tick
Operating environment (Sensors)
- Operating temperature range -30 deg to 145 deg C
- Storage temperature range -40 deg to 145 deg C
- Operating humidity 100%
- Shock >500G from 1m height
- Vibration 3.5mm 10 Hz in X,Y and Z direction
Power (Sensors)
- Sensor is equipped with battery – CR1632 (3V)
- Battery Life – Approx. 1 Year
Dimensions Sensor (Sensors)
- Weight – 10g±1 g
- Size – Diameter 18.5mm / Height 20mm
*Specifications subject to change without notice.
*This model is not recommended for monitoring Trailers or Caravans
