Description

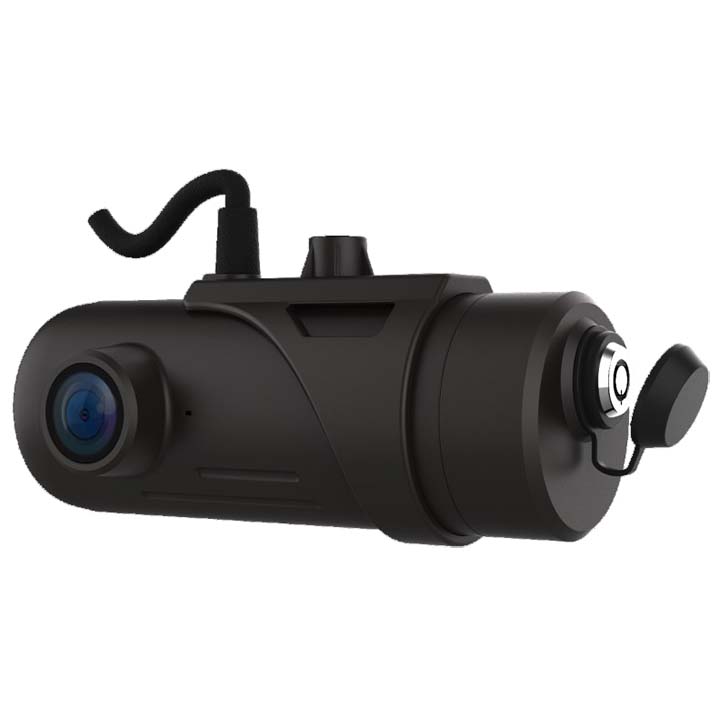

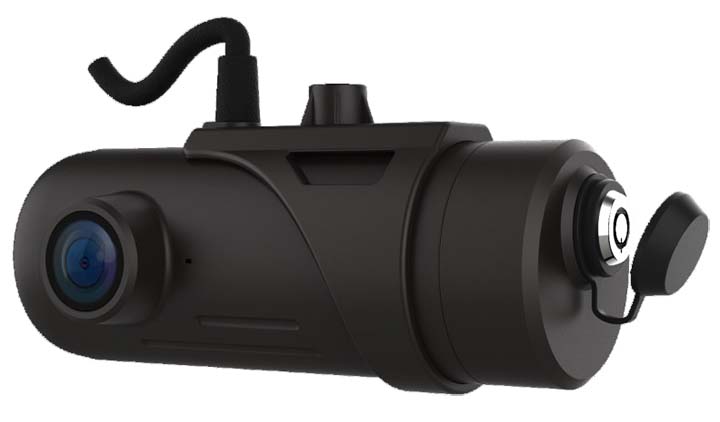

Camera for professional vehicles CDP-TB-BOX-II (GPS, Wi-Fi and 4G)
The CDP TB-BOX-II professional vehicle camera is a vital tool to ensure road safety and protect against illegal activity.

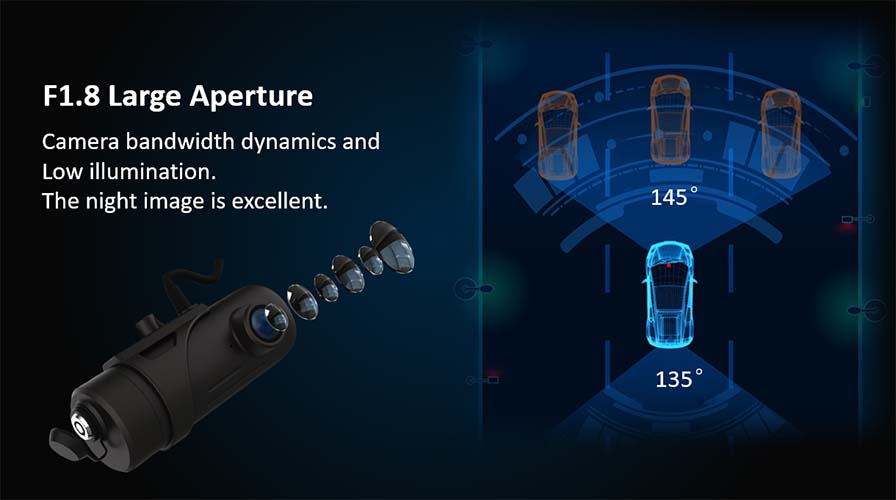

With a clear two-channel HD video recording, it has a built-in camera that records facing the road and an optional one that can be placed in the cabin, behind or anywhere else you want.
Its design makes it ideal for use in Taxis, VTC, vans, particular cars, adventure cars, etc.
It is a very practical and useful device for anyone who spends time on the road. It has a very small and discreet size, but its design is robust and compact.

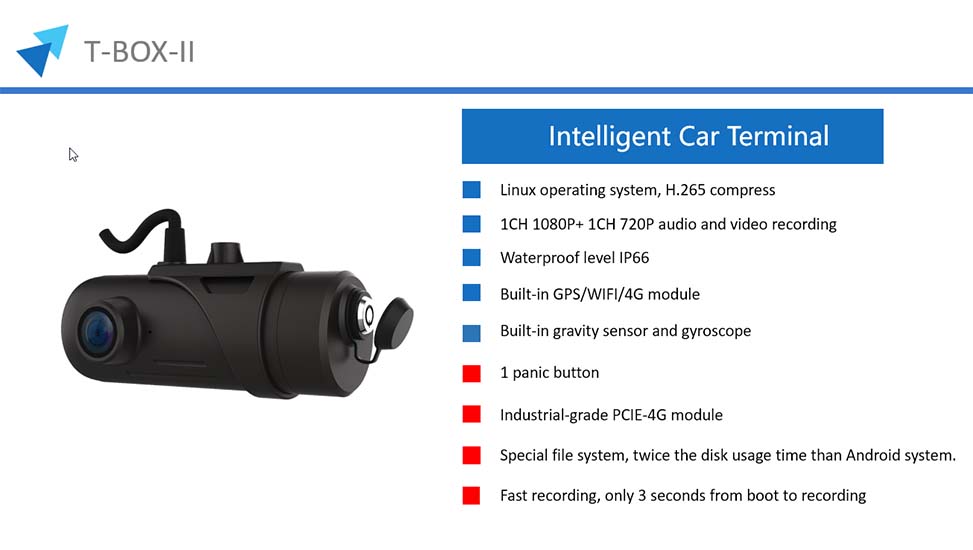

Key Features
- Linux operating system, compression H.265.
- Audio and video recording 1CH 1080P+ 1CH 720P.
- Waterproof level IP66.
- Built-in GPS/WIFI/4G module.
- Built-in gravity sensor and gyroscope.
- 1 panic button (SOS).
- Industrial Grade PCIE-4G Module.
- File system, doubles disk time.

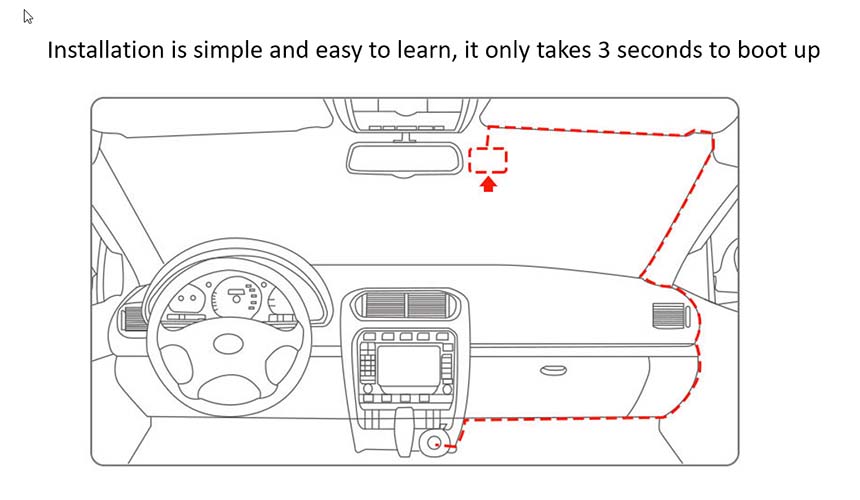

- Fast recording, only 3 seconds from boot to recording.
- Automatically detects collisions and saves video files so they don’t get lost.
- In case of SOS emergency, pre-post recordings are uploaded automatically to the Cloud server. If the criminal took the camera, the recordings would be safe in the cloud.
- The mobile phone can be connected directly to the device via WIFI, you can view/download the video stored on the device; no need to constantly install/remove the device.
- Supports 256G Micro SD card storage. It uses a file system that maximizes disk life.
- Software to view DVR status and check historical data of the vehicle (video, speeding, mileage, alarm, etc.)
- Detailed analysis system regarding driving behavior, can check abnormal driving data of the vehicle and display these in the graphic interface.
- Data reports can be exported to various file formats (EXCEL, PDF).
Specifications
PARAMETER | PERFORMANCE | ||||
System | Operating system | Linux | |||
Video | Video input | Built-in 1CH 1080P, 1CH 720P external camera | |||
Video standard | PAL, NTSC | ||||
Video compression | Main profile H.265, 50–60 frames/sec. | ||||
Audio | Audio input | 1 Audio output | |||
Sound code | G726/G711 | ||||
Recording form | Simultaneous AV recording | ||||
Image processing and storage | Image format | 1920X1080 1080P | |||
Video Streaming Standard | ISO14496-10 | ||||
Video Code Rate | 1080p: 2048 Kbps ~ 4096 Kbps | ||||
Audio code rate | 40 KB/s | ||||
Data storage | 1x 256GB Micro SD card | ||||
Alarm | Alarm alarm | 1 Alarm alarm | |||
Communication port | Car Battery Inspection | 1 Power data | |||
Wireless Modules | 4G LTE (Nano-SIM card) | Optional, compatible with TD-LTE/FDD-LTE | |||
WIFI | Built-in | ||||
GPS | Built-in | ||||
Acceleration sensor | G Sensor | Built-in | |||

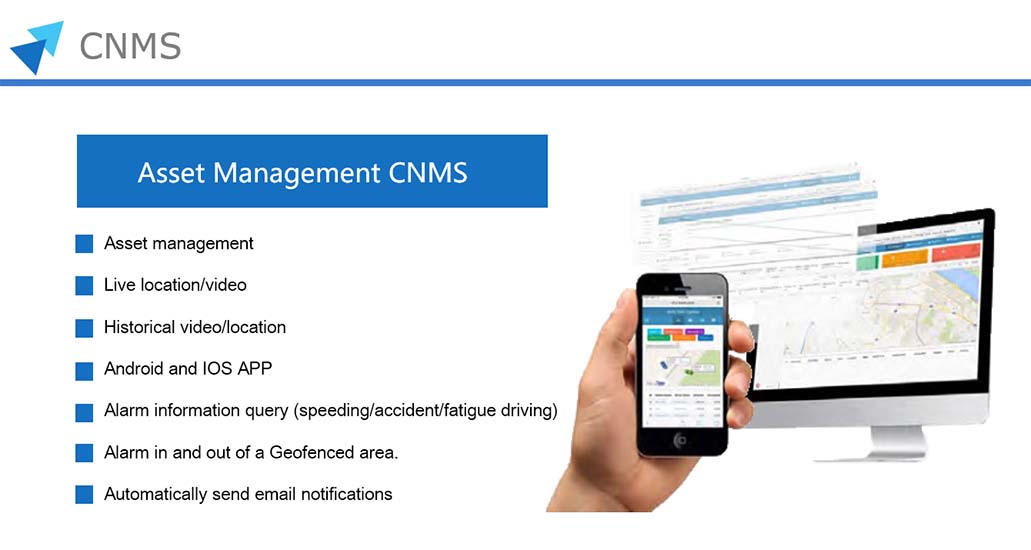

Software | Asset Management (CNMS) | 4G video monitoring and GPS tracking, etc. Platforms PC/Web/Android/iPhone/iPad, multi-language. |
|||
Vehicle Analysis Software (M-DVR Player) | Video playback and analysis |
Parameter | Instruction | |
Power input | +8V~+42V | Voltage input:+8V~+42V Power will automatically turn off when self-protection is activated if the device is outside this range for a long time. |
CAC | ≤6V | ACC deactivated |
≥7.5V | ACC activated | |
Video input impedance | 75Ω | Average 75 Ω per video channel |
External camera | 5V | Cable 5 m |
Alarm port | 0V | Panic alarm |
Disk interface | 1x Tarjeta micro SD | 256 GB max |
Operating temperature | -35°C~+75°C | Temperature in well-ventilated conditions |
