Description

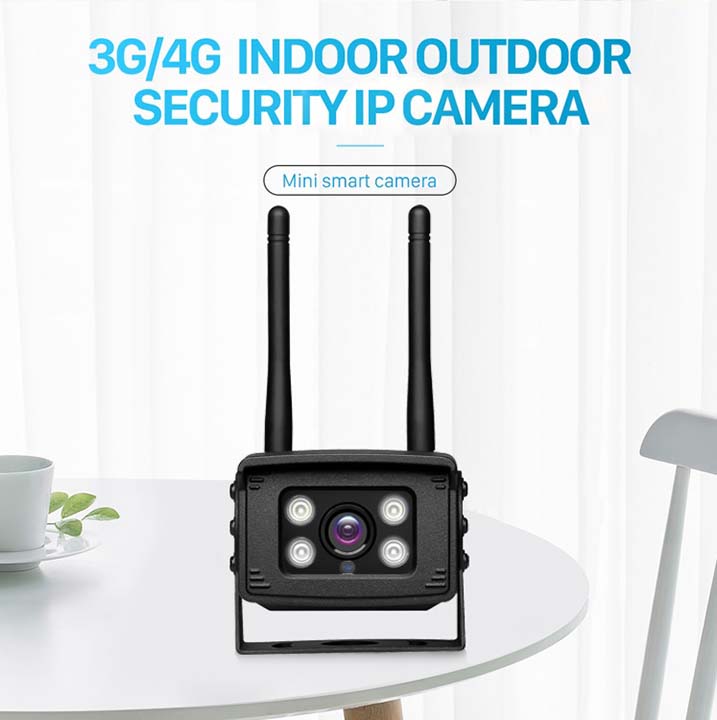

3G/4G 100% Wireless camera CDPB30A
Novelty! No Wi-Fi needed!
Motion detection and alerting with APP notifications and event recording. When motion is detected in the viewing area, the camera automatically activates the recording, so anyone who is prowling the area will be recorded. At the same time, it sends notifications to your phone and your e-mail with different screenshots of the facts so that appropriate action can be taken.
Real-time video from your mobile. Full HD quality, with infrared or color night vision.
High-quality dual-track audio (speech/listening) via built-in speaker and microphone. You can hear and talk through the camera. Thanks to the integrated two-way audio, you can warn or converse with the people who are in your home.
Suitable for outdoor locations (weatherproof). It can also be used inside. You simply need a 3G/4G card with active data and 3G/4G mobile coverage.
Self-configurable P2P mode.
App valid for IOS and Android. You can record videos on your mobile whenever you want. Using the free App installed on your smartphone, you can record all the scenes you need. From the same mobile, you can access the recordings made by the security camera, even if there is no internet at the time.
Technical details
| Model | CDP-B30-A | |
| Video | Sensor | CMOS SONY307 de 2,0 mega pixels and 1 / 2,8 “ |
| Video resolution | Main flow: 1920×1080 @ 20fps, 1280×720 @ 25fps | |
| Secondary transmission: 640×352 @ 25fps , 320×176 @ 25fps | ||
| Video compression | H.264 / H.265 | |
| Lens | Optional lens 2.8 / 3.6 (Default) / 6 mm | |
| Viewing angle | 89,9 ° / 75,7 ° (Default) / 50 ° according to the objective | |
| Night vision | 18-piece infrared LEDs, night vision distance 20 m | |
| Alarm | Motion detection alarm | You can configure 4 separate detection regions (can set up sensitivity from 1 to 100) |
| Alarm link | Alarm sends photos to mailbox | |
| Uploading alarm images and images to the FTP server | ||
| Alarm records images and videos to Micro SD card | ||
| Notification on alarm mobile phone | ||
| Alarm recording | Supports alarm recording on Micro SD card and PC | |
| 3G / 4G (EU version) | Standard 3G | WCDMA |
| Frequency range 3G | B1 (2100 MHz), B8 (900 MHz) | |
| Standard 4G | FDD-LTE / TDD-LTE | |
| Frequency range 4G | B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz) | |
| Interface type | Micro SIM card, Plug and play, no need to set up | |
| 3G / 4G (U.S. version) | Standard 3G | WCDMA / TD-SCDMA |
| Frequency range 3G | B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz) | |
| Standard 4G | FDD-LTE | |
| Frequency range 4G | B1 (2100 MHz), B2 (1900 MHz), B12 (700 MHz), B13 (700 MHz) | |
| Interface type | Micro SIM card, Plug and play, no need to set up | |
| Storage | Micro SD card | Supports micro-SD cards up to 128G |
| Recording mode | Alarm log, time log | |
| Video playback | Supports application, IE browser, remote client playback and download video | |
| General specification | Power | DC12V 1A |
| Operating environment | Environment -20 ℃ ~ + 60 ℃ (-4 ℉ ~ + 140 ℉), | |
| Humidity 10% ~ 90%, non-condensing | ||
| Case material | The whole casing is made of metal | |
| Waterproof level | IP66 | |
| Product size | 70 mm × 60 mm × 55 mm (length × wide × height) | |
| Product weight | 0.4 kg | |
| Package size | 190mmx130mmx90mm (length × wide × height) | |
| Package weight | 0.55 kg | |
| Reset button | Supported | |
